Automated Valve Packages
Integrated Pneumatic Butterfly & Ball Valve Package
Ready-to-install automated valve assemblies comprising high-grade valves, Huaji actuators, solenoids, limit switch boxes, and smart electro-pneumatic positioners.
Torque Range
DN15 to DN1200 Valve Sizes
Supply Pressure
PN10, PN16, PN25, PN40, ANSI 150LB - 600LB
Working Temperature
-40°C to +200°C
Integrated Pneumatic Butterfly & Ball Valve Package
Image of · High Resolution
Product Overview & Operating Principles
Customized integrated valve automation solutions delivered fully assembled, calibrated, and 100% factory pressure tested. Eliminates mounting alignment issues on site and guarantees seamless modulating or on-off performance in harsh processing plants.
Key Engineering Advantages:
Complete turnkey solution with valve, actuator, and accessories
Factory aligned, mounted, wired, and pressure tested before shipment
Available for Wafer/Lug butterfly valves and 2-piece / 3-piece ball valves
Smart 4-20mA positioner feedback for precision flow modulation
Fire-safe design certified (API 607 / ISO 10497)
Explosion-proof ExdIICT6 accessories available for hazardous areas

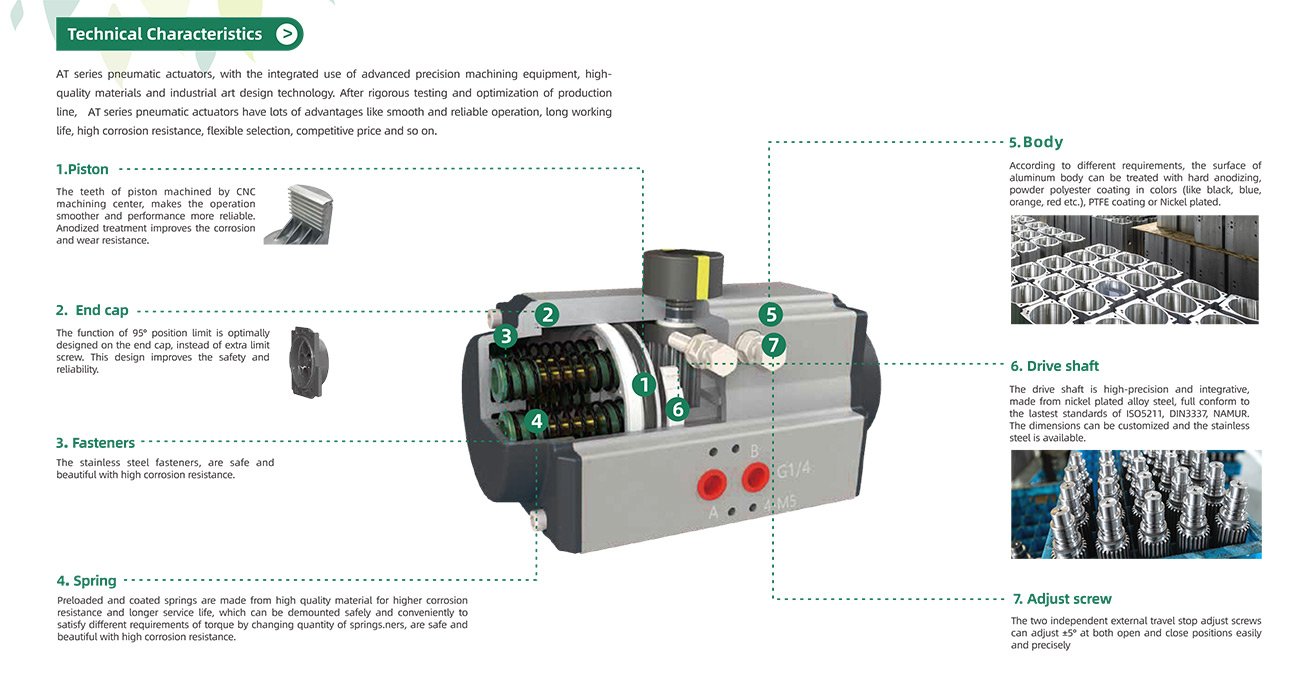

Technical Drawings & Blueprints

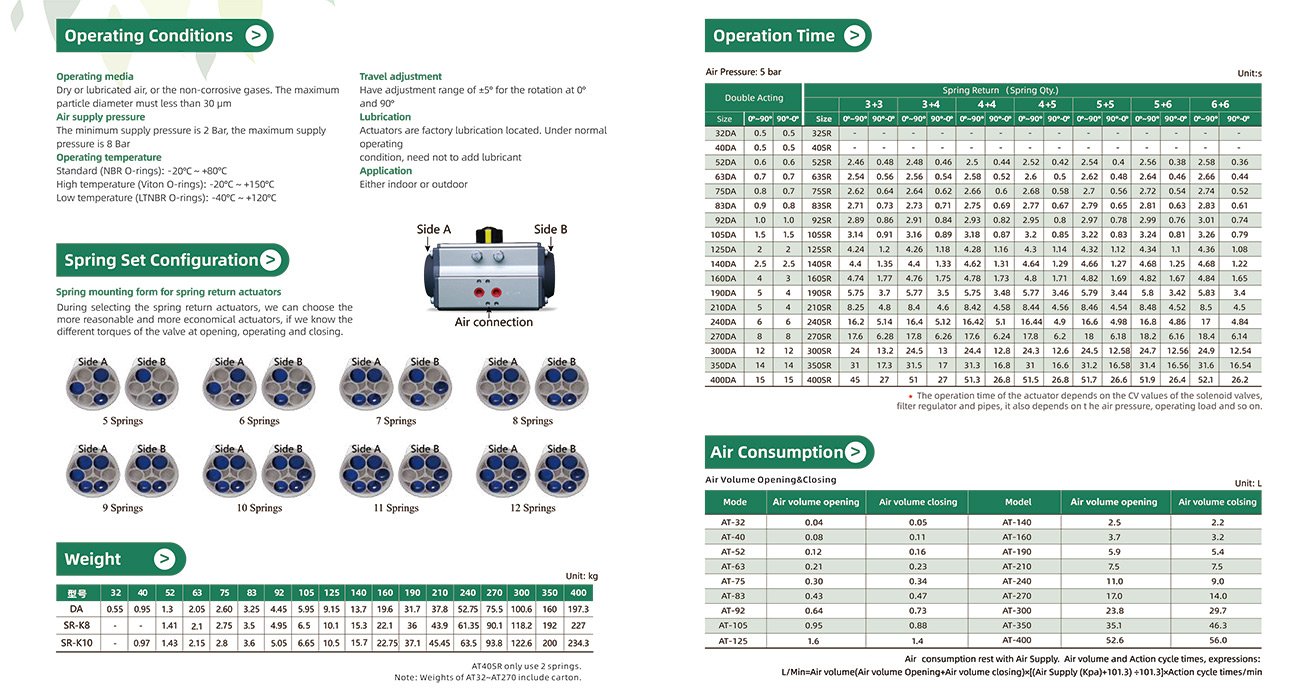

High-definition sizing charts, torque curves, and structural schematics.
Standard Technical Specifications
| Parameter | Huaji Standard Specification |
|---|---|
| Valve Types | Wafer Butterfly, Lug Butterfly, Flanged Ball Valve, 3-Way Ball Valve |
| Nominal Diameter | DN15 – DN1200 (1/2" – 48") |
| Nominal Pressure | 1.0 – 6.4 MPa / Class 150 – 600 |
| Body Materials | WCB, CF8 (SS304), CF8M (SS316), Duplex Stainless Steel |
| Seat Material | PTFE, RPTFE, PPL, EPDM, Metal Hard Sealing |
| Control Type | On/Off Switching or 4-20mA Continuous Modulating |
Inquire About This Product
Specify your size, torque requirements, or quantity for a fast quote within 12 hours.
