AT series pneumatic actuators, with integrated precision machining equipment, high quality materials and industrial art design technology. Smooth operation, long working life, high corrosion resistance.

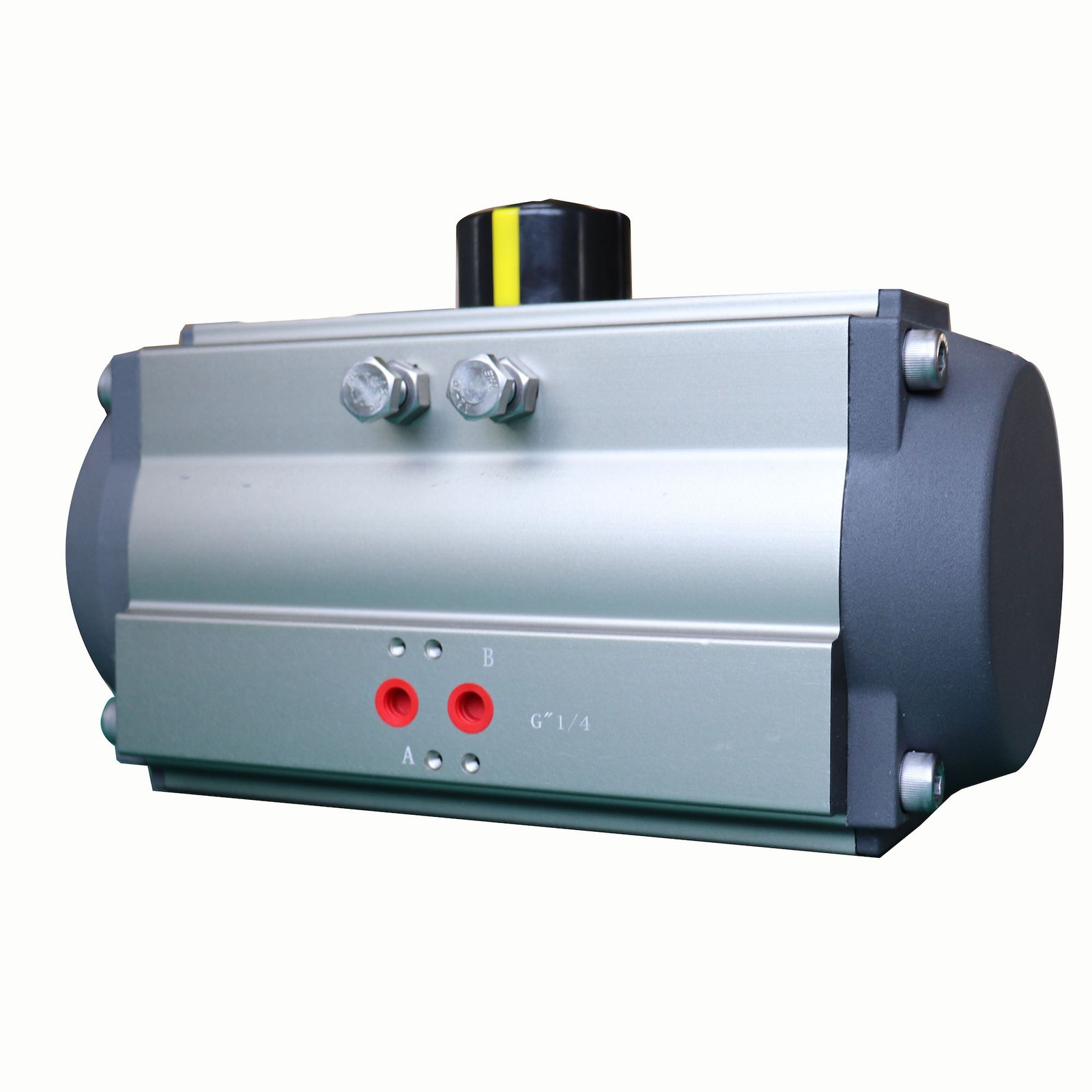

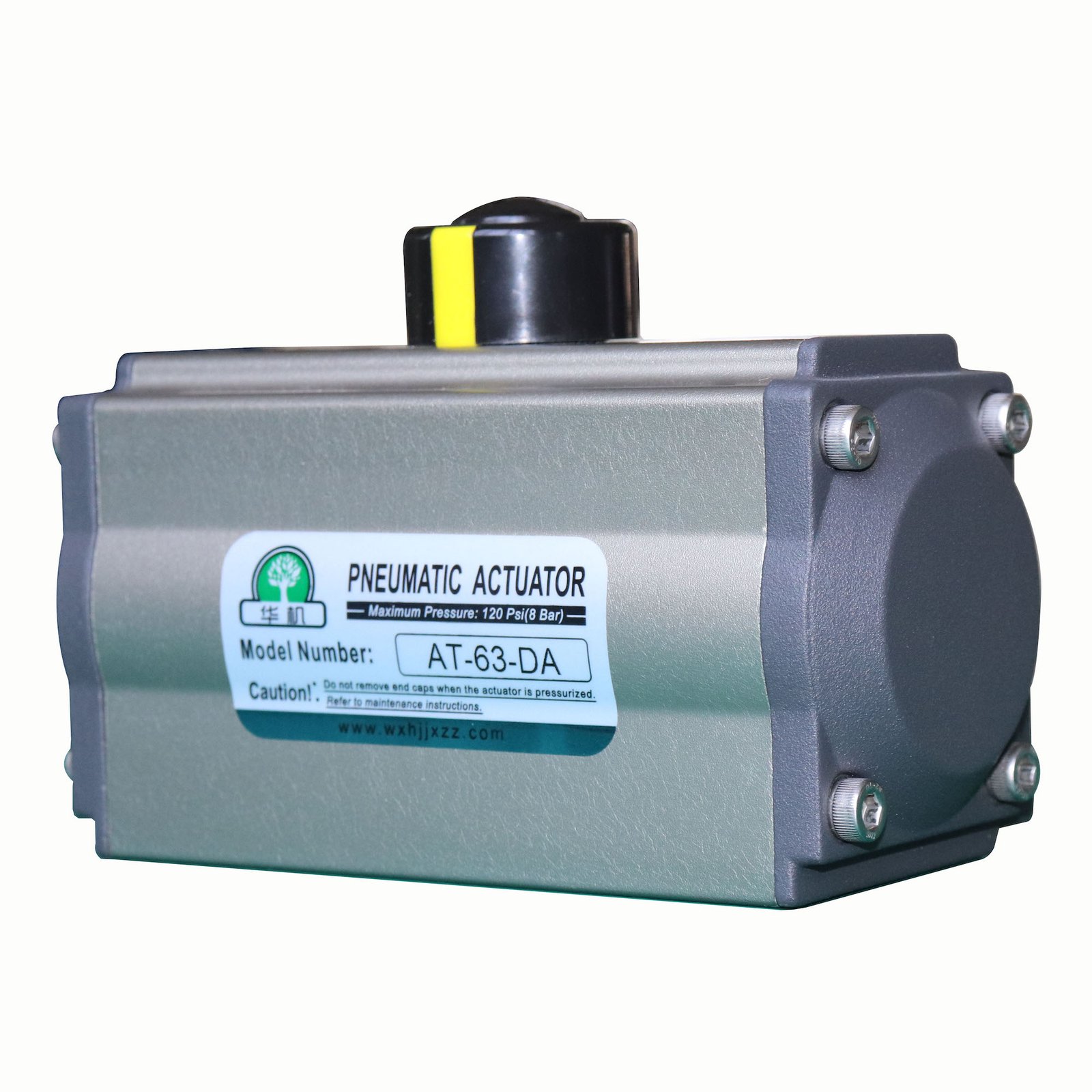

AT series pneumatic actuators

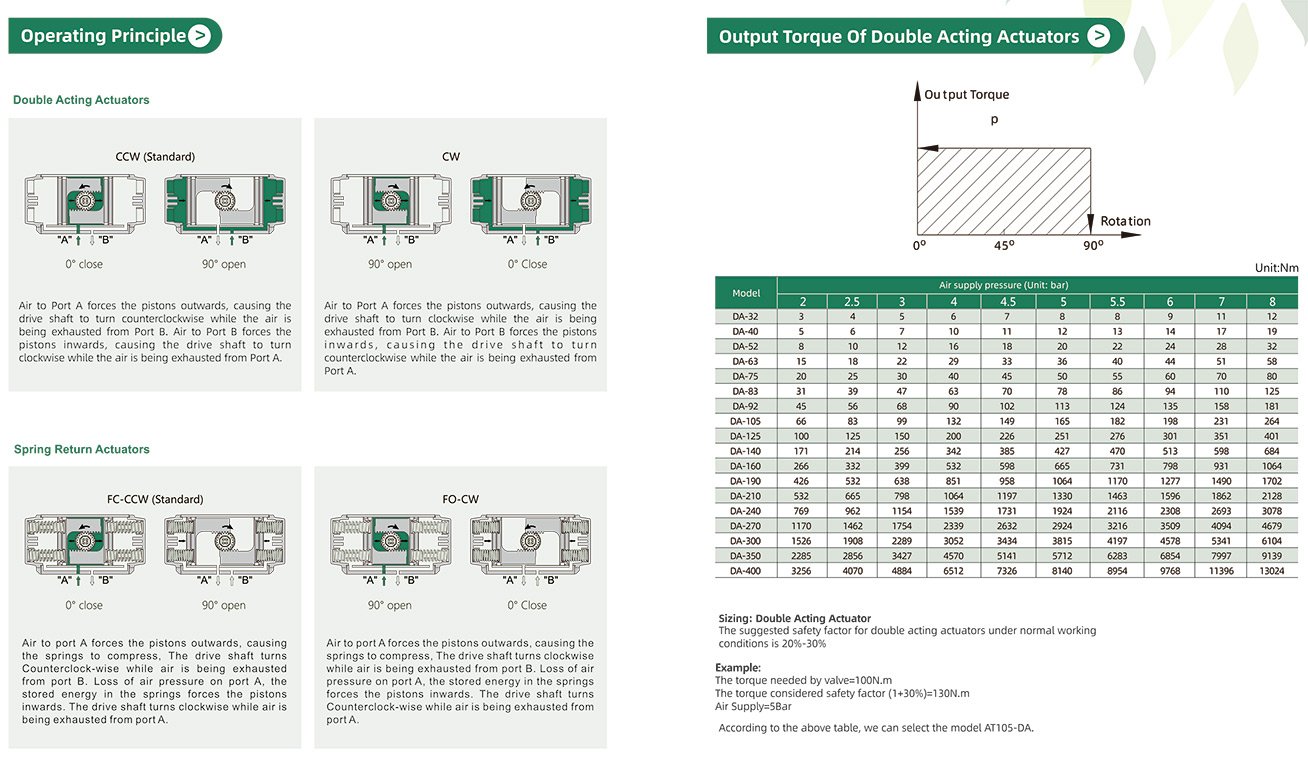

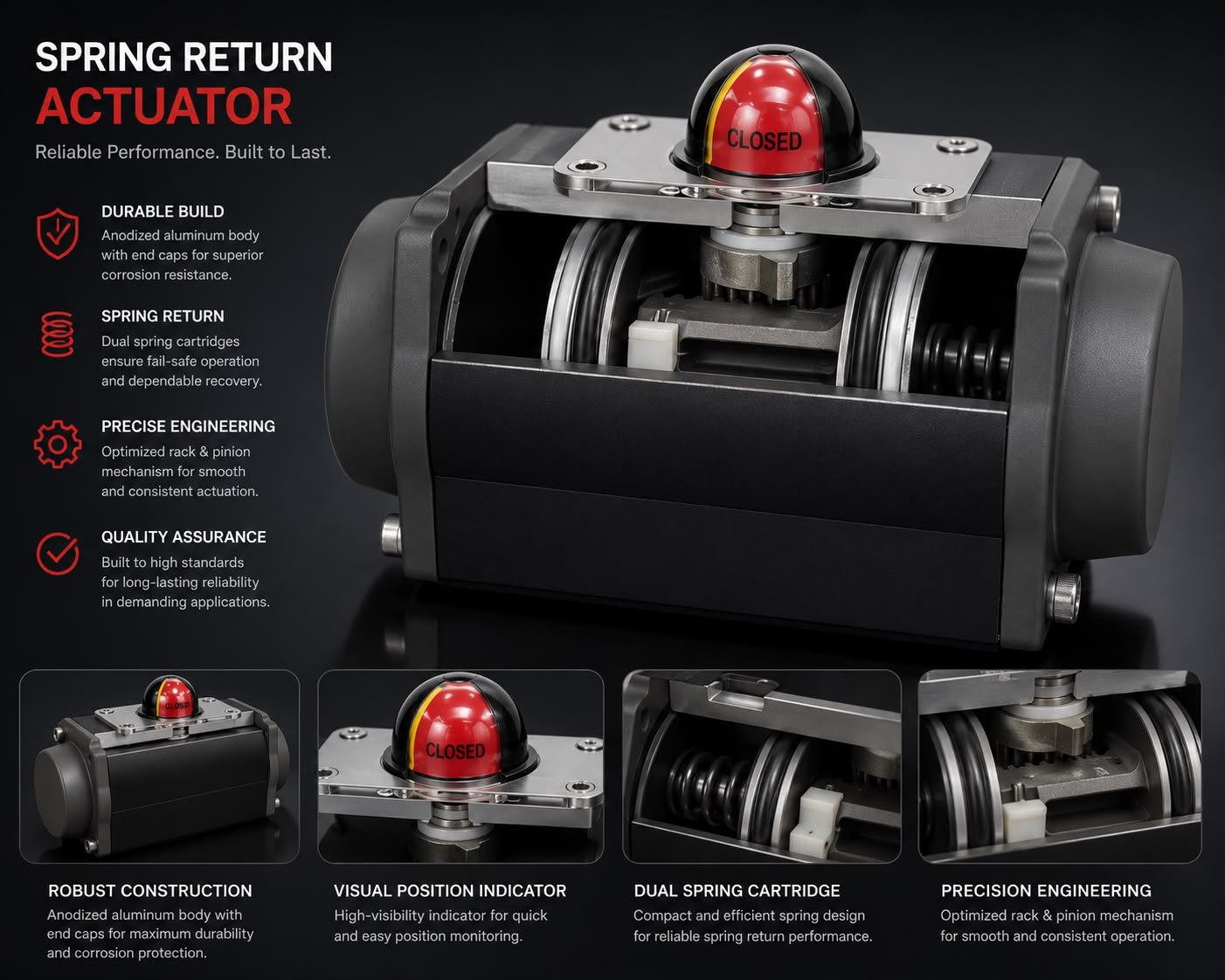

Product Overview & Operating Principles

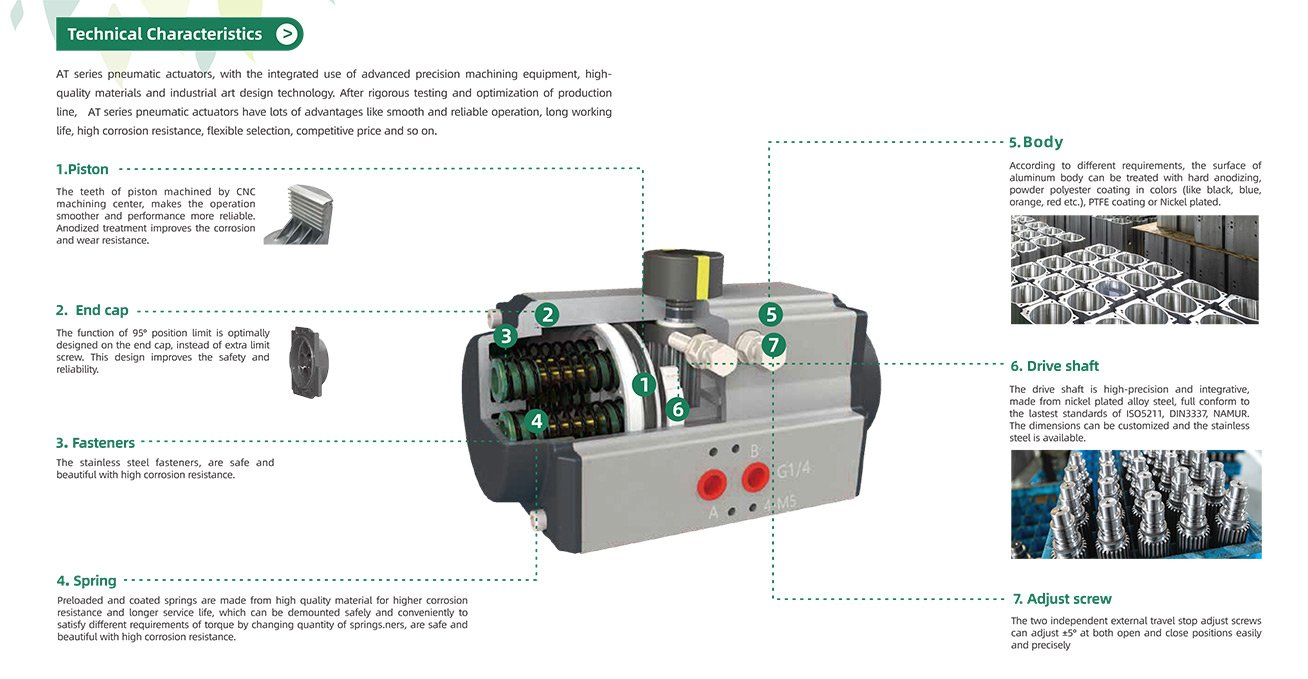

AT series pneumatic actuators, with the integrated use of advanced precision machining equipment, high-quality materials and industrial art design technology. After rigorous testing and optimization of production line, AT series pneumatic actuators have lots of advantages like smooth and reliable operation, long working life, high corrosion resistance, flexible selection, competitive price and so on. The cylinder body is manufactured from ASTM6005 extruded aluminum alloy with both internal and external hard anodized finish. Symmetrical dual piston rack and pinion structure guarantees uniform output torque and fast response.
Key Engineering Advantages:
Technical Drawings & Blueprints

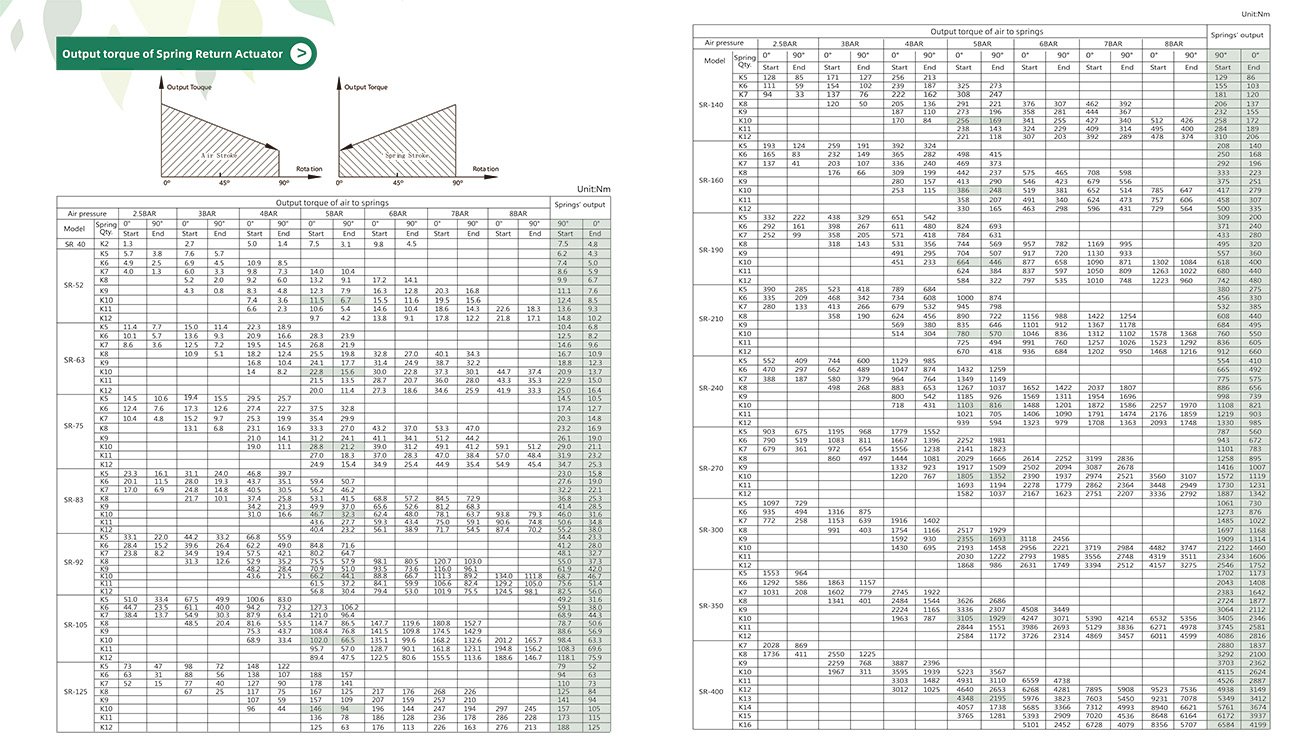

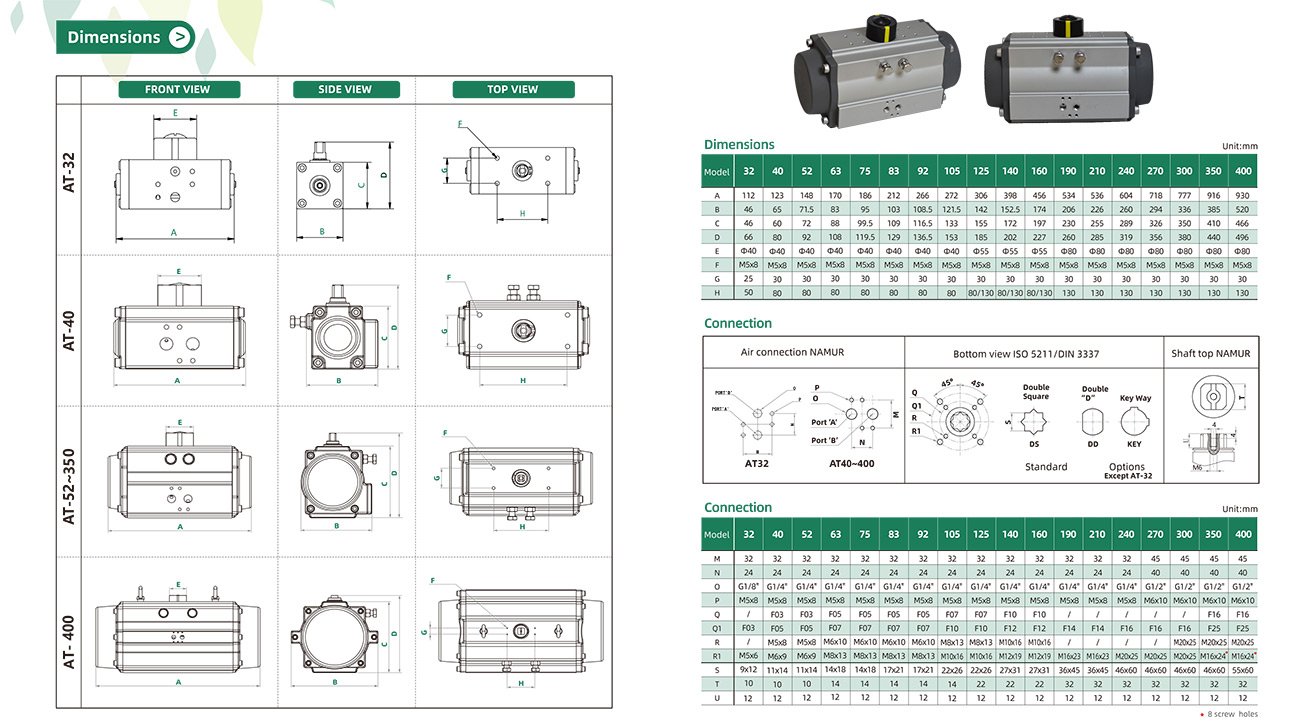

High-definition sizing charts, torque curves, and structural schematics.

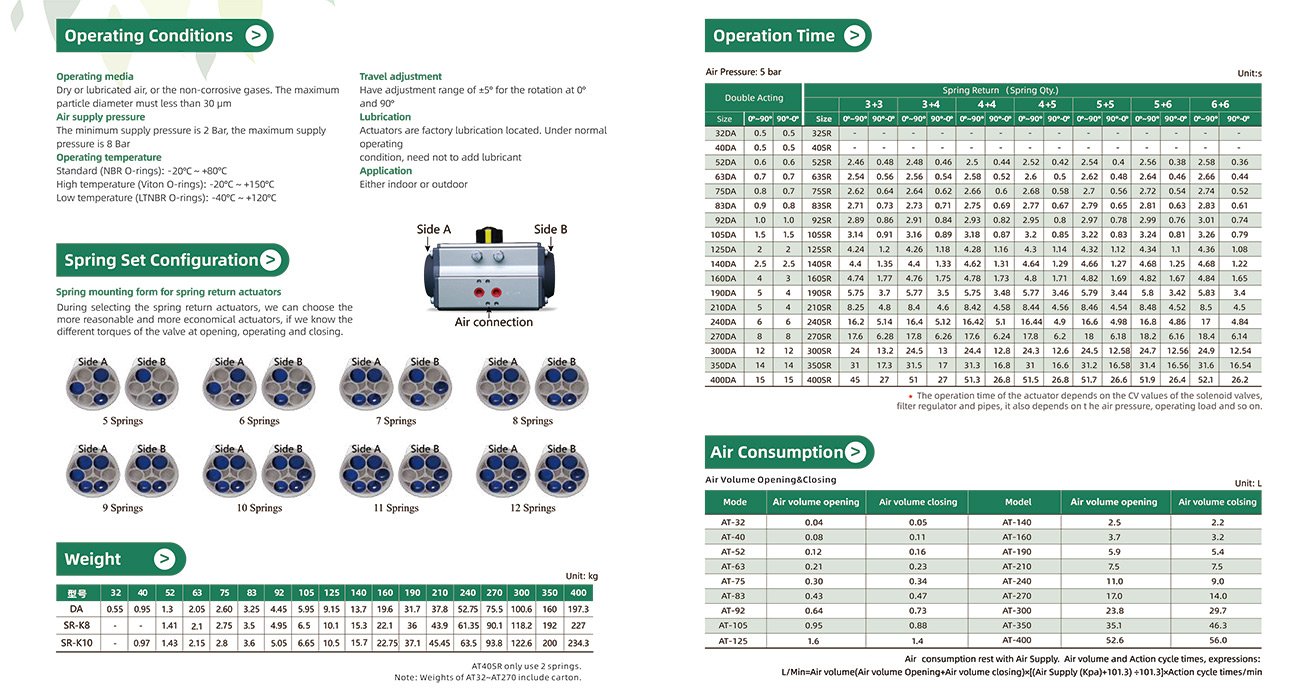

Standard Technical Specifications
| Parameter | Huaji Standard Specification |
|---|---|
| Product Model | AT-32 to AT-400 (Double Acting & Spring Return) |
| Actuator Mechanism | Quarter-Turn Dual Piston Rack & Pinion |
| Operating Medium | Filtered dry or lubricated compressed air (<30μm) |
| Travel Angle | 90° ± 5° bi-directional adjustment |
| Air Supply Pressure | 2.5 ~ 8.0 Bar (Max 10 Bar proof test) |
| Mounting Interface | ISO5211 / DIN3337 Flange & NAMUR Top Drive |
| Cylinder Body | Extruded Aluminum Alloy ASTM6005 (Hard Anodized >45μm) |
| Piston Material | Die-cast Aluminum Alloy ADC12 |
| Shaft Material | Forged Alloy Steel (Nickel Plated) |
| Fasteners | Stainless Steel AISI 304 / 316 |
| Seals | NBR (Standard), Silicone (-40°C Low Temp), Viton (+150°C High Temp) |
